Home > generator set engine >

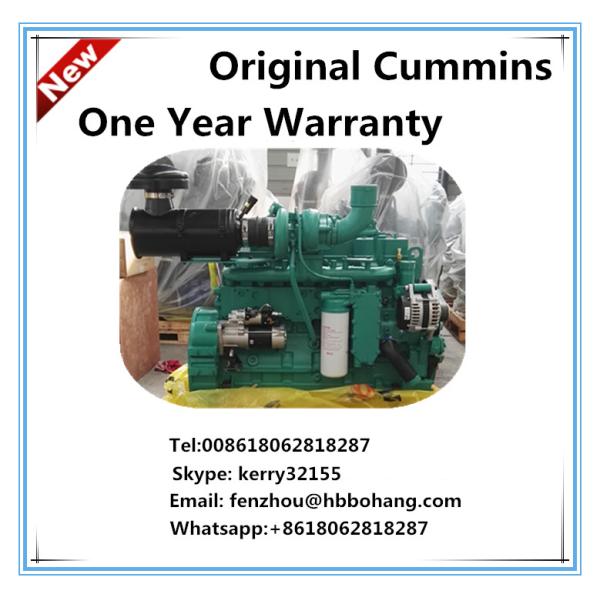

water pump system engine 6BTAA5.9-G2 with clutch by Dongfeng Cummins

Product Categories

Hubei Bohang Power Technology Co., Ltd.

Contact Now

Place of Origin : China

Brand Name : Cummins

Certification : ISO9001:2008

Model Number : 6BTAA5.9-G2

MOQ : 1 set

Packaging Details : up to your requiement

Delivery Time : within 20 working days

Payment Terms : T/T

Supply Ability : 500 set per month

Contact Now

Engine Specifications:

Compression Ration	16.8:1
Displacement	5.9L
Rated Power	120kW
Standby Power	130kW
Rated Speed	1500rpm
Genset Matching Power	100kW
Fuel Injection Pump	A Injection Pump
Steady Speed Capacity	≤3%
Lubricant Capacity	16L
Coolant Capacity	10.4L
Net Weight	450kg
Wet Weight	470kg
Overall dimension	1026699912mm
Coolant Intake Size	58 mm
Coolant Outlet Size	45 mm
Cooling Way	Positive Water Cooling Cycle

6BTAA5.9-G2 is a in-line, 6 cylinders, 4 cycle, turbocharged and air-air aftercooled engine.

Used for diesel generator set, water pump, etc.

SPECIFICATIONS FOR 6btaa5.9-g2 engine assy
Engine	6btaa5.9-g2	1500/1800rpm	120KW
	6 cylinders inline	5.9L	Turbocharged and air-air aftercooled engine
	16.8:1
Main performance parameters	Bore	102mm
	Stroke	120mm
	Wet Weight	470kg
Others	Coolant Intake Size	mm	50
	Coolant Outlet Size	mm	57
	Highest idling	rpm	700-900
